Digital Surveillance Recorder 16CH HD-TVI-LTD16TC-2T

By 101 Audio Video Inc.

101 Audio Video Inc.

Product Features
  • 16CH HD DVR w/ 2TB HDD. DVR can connect 16 HD/SD cameras by using wired cable with BNC connectors and 2 IP Network cameras by using IP address. Triplex: Live / Playback, Record, Network. Standard H.264 Video Compression with low bit rate and better image quality. Support 2 x SATA HDDs (Each HDD can up to 6TB Storage Capacity). Exceptionally strong password and anti hacking protocols to increase privacy and security. Snapshot, and Email notifications for real time protection.
  • Pre-Alarm Recording and Motion Detection. Motion activated full screen alarm call up protection with optional audible warning. Dual-stream: network video and local recording. CMS and web-based remote monitoring software. Up to 1080P HDMI and 1920 x 1024 VGA Output Resolution. USB Backup and USB Mouse.

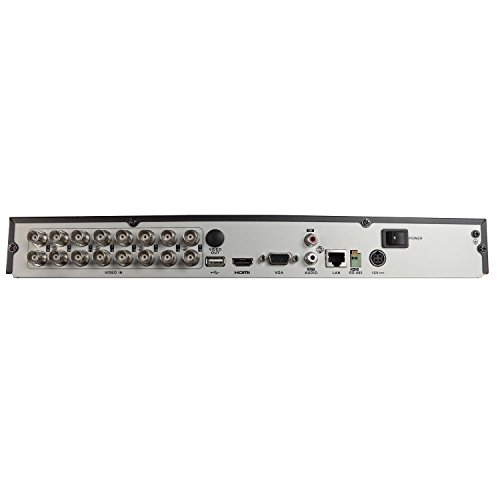

  • Multiple video formats output including Full HD/TVI, SD/960H/composite video, and IP/network to work with various existing and new HD surveillance system. Full HD picture quality for solid day & night surveillance applications. Multiple Video Out connectors for extra viewing needs including: HDMI/VGA/BNC/IP network video monitoring. DVR is compatible with all ONVIF version IP cameras, including Hikvision brand.
  • User friendly setup instructions including QIG (Quick Installation Guide) for PC based VMS/CMS integration. Cloud based cell phone APPs for both Android and iPhone without confusing port forwarding, and real time Snapshot alarm notification. There are options to show 1, 4, 8, and 16 cameras simultaneously on both the mobile APP on cell phone and also the Central Monitoring Software (CMS) on PC.
  • Recording Resolution:1. Regular Mode:a. 1080P resolution can only up to 12FPSb. Other resolution (720P/under) can up to 30FPS 2. 1080P Lite Mode: a. 960×1080 (1080P Lite) resolution can up to 30FPS b. Other resolution (960*720 (720P Lite or under) can up to 30FPS, US Local Support (Office Hour 8:00AM to 5:30PM, Mon to Fri, Pacific time). Support 3 Years Manufacturer Warranty. We are the sole distributor of 101 AV Inc products. There are no authorized 3rd party resellers of our products.
Available Color

2TB Hard Drive FBA
Height 4in. Width 12in.
Length 14in. Weight 3.5lbs.


Product Description
Digital Surveillance Recorder 16CH HD-TVI 1080P H.264 True-HD DVR w/ 2TB HDD HDMI VGA Video Output Mobile Phone Accessible Great for Home Office

101 Audio Video Inc. 101 AV Inc. provides various kinds of high-quality, delicate-look and reasonable-price security products. This model, LTD16TC, 16CH HD-TVI H.264 True-HD DVR (Digital Video Recorder) is designed especially for CCTV system. It adopts high performance video processing chips and embedded Linux system. Meanwhile, it utilizes many most advanced technologies, such as standard H.264 with low bit rate, Dual stream, SATA interface, HDMI and VGA output mouse supported, IE browser supported with full remote control, mobile view (by phones), etc., which ensure its powerful functions and high stability. Due to these distinctive characteristics, it is widely used in banks, telecommunication, transportation, factories, warehouse, and irrigation and so on. Features H.264 compression with low bit rate and better image quality 1080P HDMI and 1920×1024 VGA output, channel security by hiding live display and USB Mouse to make full control DVR can connect 16 HD/SD cameras by using wired cable with BNC connectors and 2 IP Network cameras by using IP address. Support Two SATA HDD to record for a longer time without any limitation; Each HDD can up to 6TB storage (With Pre-Installed 2 TB Hard Drive) Support USB 2.0 devices, Easy backup with USB FLASH DRIVE and Network DVR is compatible with all ONVIF version IP cameras, including Hikvision brand. Support schedule for motion detection, linked channels recording once motion triggered on certain channel Support PELCO-D and PELCO protocol for PTZ control Up to 16 ch synchronous playback at 1080P Support Cloud based cell Phone APPs for both Android and iPhone without confusing port forwarding CMS to manage multi devices on internet Support 3 Years Manufacturer Warranty What’s in the box?16-CH HD-TVI H.264 DVR with 2TB HDD and Accessories.Explore this more…

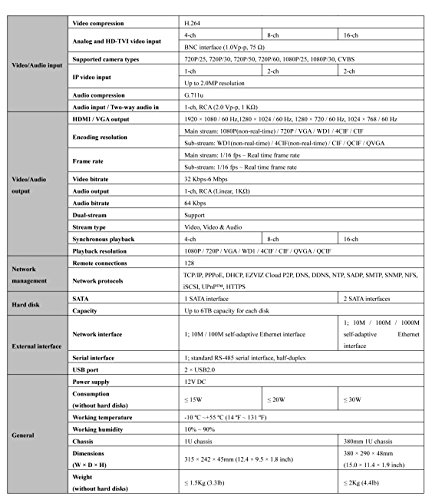

Technical Details

Available 4
UPC# 679845001178
