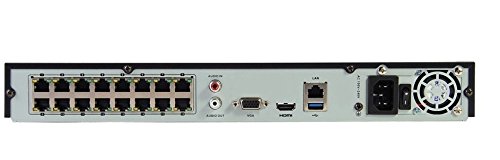

HIKVISION 16CH 16 Ports PoE DS-7616NI-E2/16P NVR Network Video Recorder

Powerful Controls and Latest Features

HIKVISION 16CH 16 Ports PoE DS-7616NI-E2/16P NVR Network Video Recorder Features: Live View from Cellphone or Internet Up to 5 MP Resolution Recording HDMI and VGA output at up to 1920×1080P Resolution HDD Quota and group management Third-Party network cameras supported 4 Independent PoE Network Interfaces Specifications: Video/Audio Input IP Video Input: 16-ch Two-way Audio: 1-ch RCA(2.0Vp-p, 1kΩ) Video/Audio Output Decoding resolution: 5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF HDMI / VGA Output: 1CH Resolution: 1920×1080P/60Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz Audio Output: 1-ch RCA(Linear, 1kΩ) Playback Resolution: 5MP /3MP / 1080P / UXGA / 720P / 4CIF / VGA / DCIF / 2CIF / CIF / QCIF Synchronous Playback: 4-ch Interface Type: 1 SATA Interface Capacity: Up to 4TB capacity for each disk Network Interface: 1 RJ45 10M/100M/1000M adaptive Ethernet Interface, /N models support 8 independent 10/100 Mbps Ethernet interfaces for built-in switch USB Interface: 2 USB 2.0 Interfaces Serial Interface: 1 RS-485 interface (Reserved) Power Supply: 12 VDC Consumption: ≤ 10 W (without hard disk) Working Temperature: -10 °C ~ +55 °C Working Humidity: 10% ~ 90% Chassis: Stand-alone 1U chassis Package Includes: 1 x HIKVISION 16CH 16 Ports PoE DS-7616NI-E2/16P NVR Network Video Recorder 1 x Mouse 1 x AC Power Adapter 1 x Installation Screws 1 x Data Cables 1 x English User Manual Note: Hard Drive is not included in Package 7616NI-E2/16P.

Available Color
